HT-191YG Yellow      Green GaP 2.2~2.6@20mA 4.5~12@20mA 20mA 100mA 140
HT-191Y Yellow GaAsP 2.1~2.6@20mA 7.2~9@20mA 20mA 100mA 140
HT-191YQ Ultra
     Bright      Yellow 		AlInGaP 1.8~2.6@20mA 71.5~180@20mA 20mA 100mA 140
HT-191GQ Yellow      Green AlInGaP 1.8~2.3@20mA 28~71.5@20mA 20mA 100mA 140
HT-191BP White InGaN 3.1~3.9@20mA 180~360@20mA 20mA 80mA 140
HT-191GQ5 Ultra
     Bright      Yellow      Green 		AlInGaP 1.8~2.3@5mA 4.5~11.2@20mA 20mA 100mA 140
HT-191USD Ultra
     Bright      Orange 		AlInGaP 1.6~2.4@20mA 180~360@20mA 20mA 100mA 140
HT-191NG Green InGaN 2.9~3.7@20mA 71.5~285@20mA 20mA 80mA 140
HT-191NB Blue InGaN 2.7~3.7@20mA 45~112.5@20mA 20mA 80mA 140
HT-191NB5 Blue InGaN 2.55~3.15@5mA 18~45@5mA 5mA 80mA 140
HT-191YG5 Yellow      Green GaP 1.8~2.2@5mA 4.5~18@5mA 5mA 100mA 140
HT-191UY5 Ultra
     Bright      Yellow 		AlInGaP 1.6~2.4@5mA 11.2~45@5mA 5mA 100mA 140
HT-191USD5 Ultra
     Bright      Orange 		AlInGaP 1.6~2.2@5mA 18~45@5mA 5mA 100mA 140

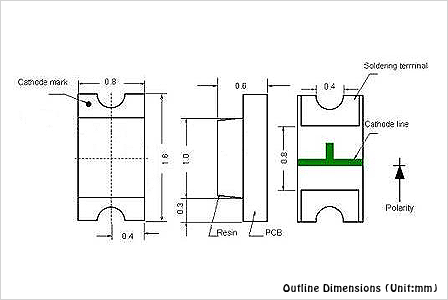

1.6×0.8×0.6 HT-191UR Ultra
     Bright
     Red 		AlInGaP 1.6~2.4@20mA 7.2~28.5@20mA

20mA

100mA

 140
